Shuffle Workflow Setup

Before we get started, make sure your Wazuh, TheHive, Windows and Ubuntu VMs are all running.

Creating the Workflow

On the left hand side, select Automate > Workflows > Create Workflow

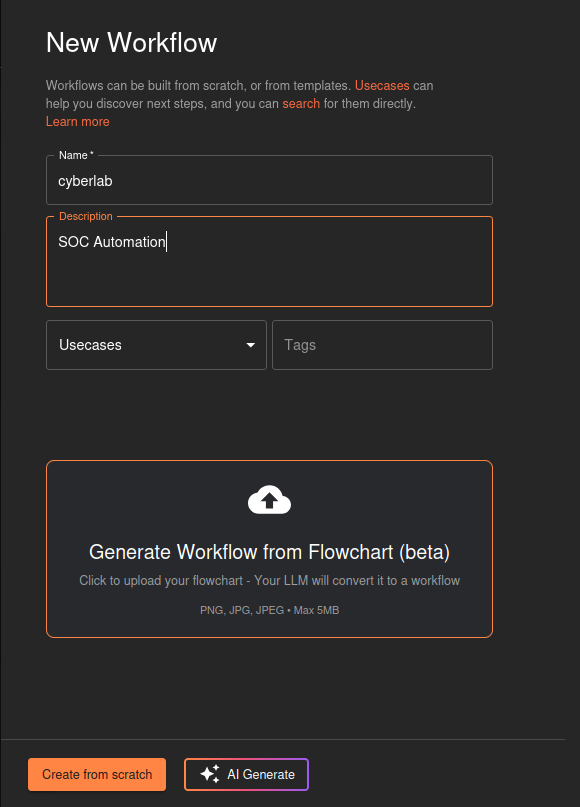

Give it a name and description then click Create from scratch

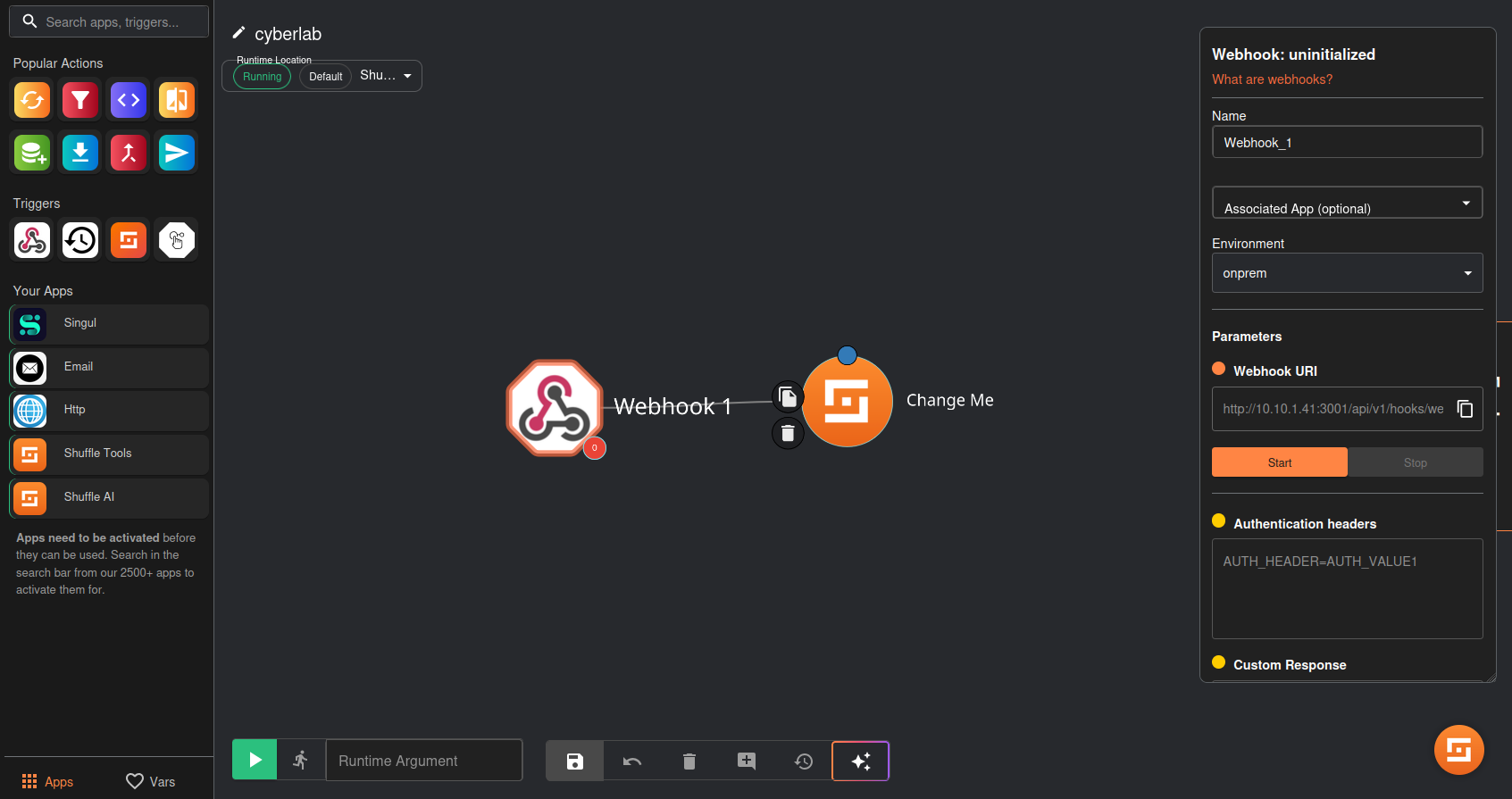

Under triggers (left hand side), drag the webhook (1st icon) onto the work area

Click on it and copy the webhook URI

SSH into the Wazuh VM

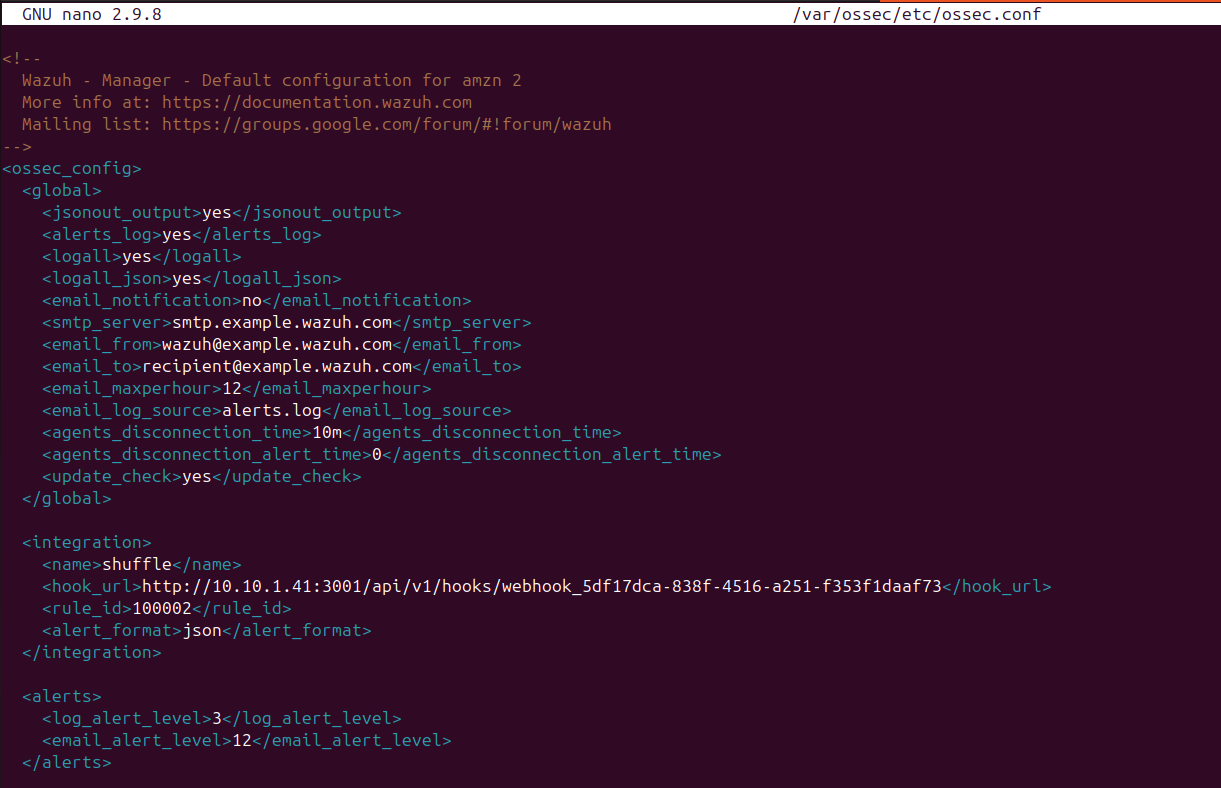

run nano /var/ossec/etc/ossec.conf

In between the “global” and “alerts” tag, paste the following:

  <integration>
    <name>shuffle</name>
    <hook_url>http://your_webhook_uri</hook_url>
    <rule_id>100002</rule_id>
    <alert_format>json</alert_format>
  </integration>

Make sure “hook_url” includes your unique webhook URI (the one you copied from Shuffle)

Save and write changes, then run systemctl restart wazuh-manager.service to apply the changes

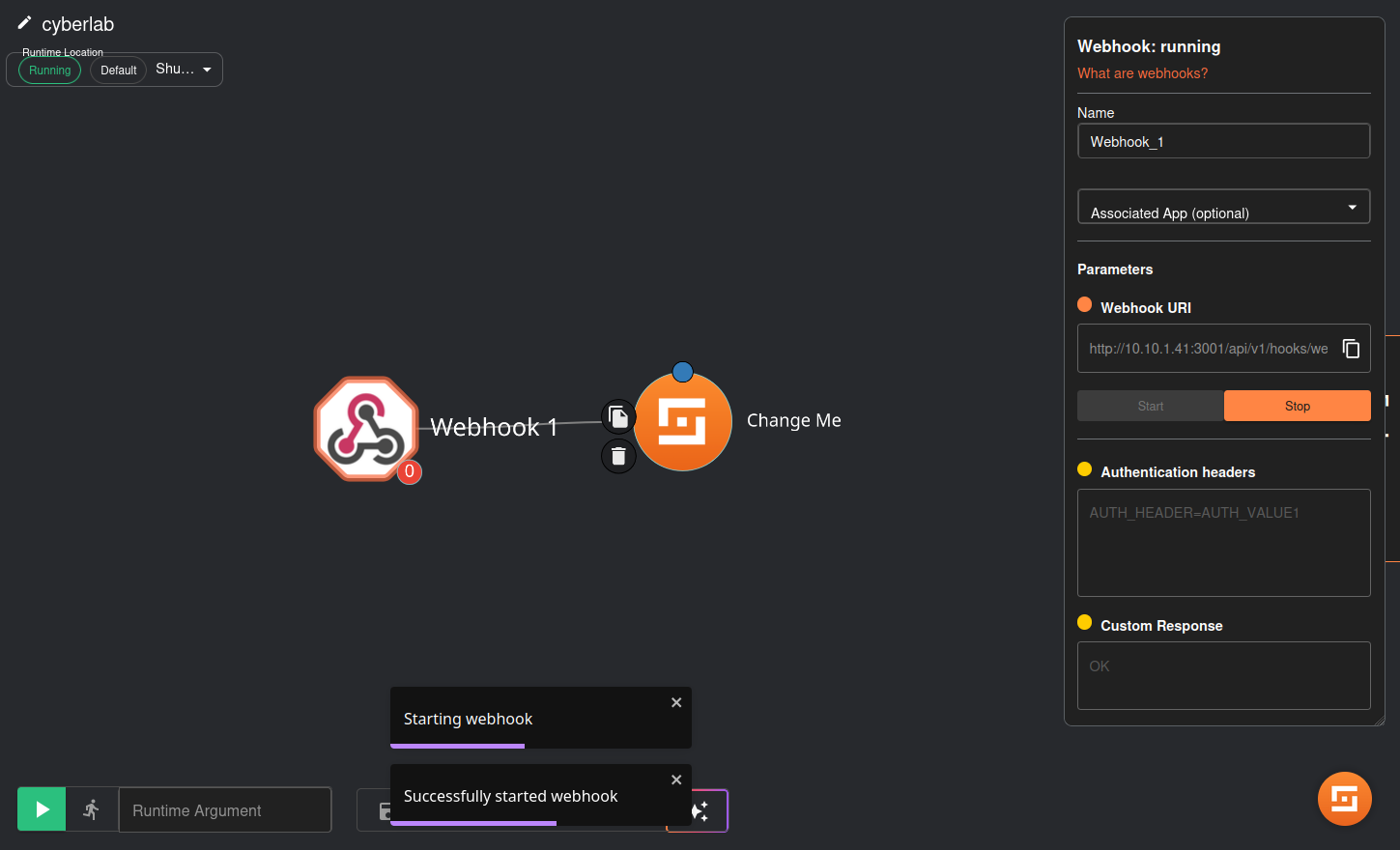

On Shuffle, click start on the webhook

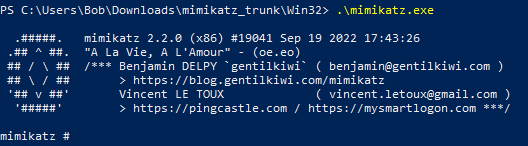

On the Windows VM, trigger the alert by executing Mimikatz

My path to the Mimikatz executable is \Downloads\mimikatz_trunk\Win32

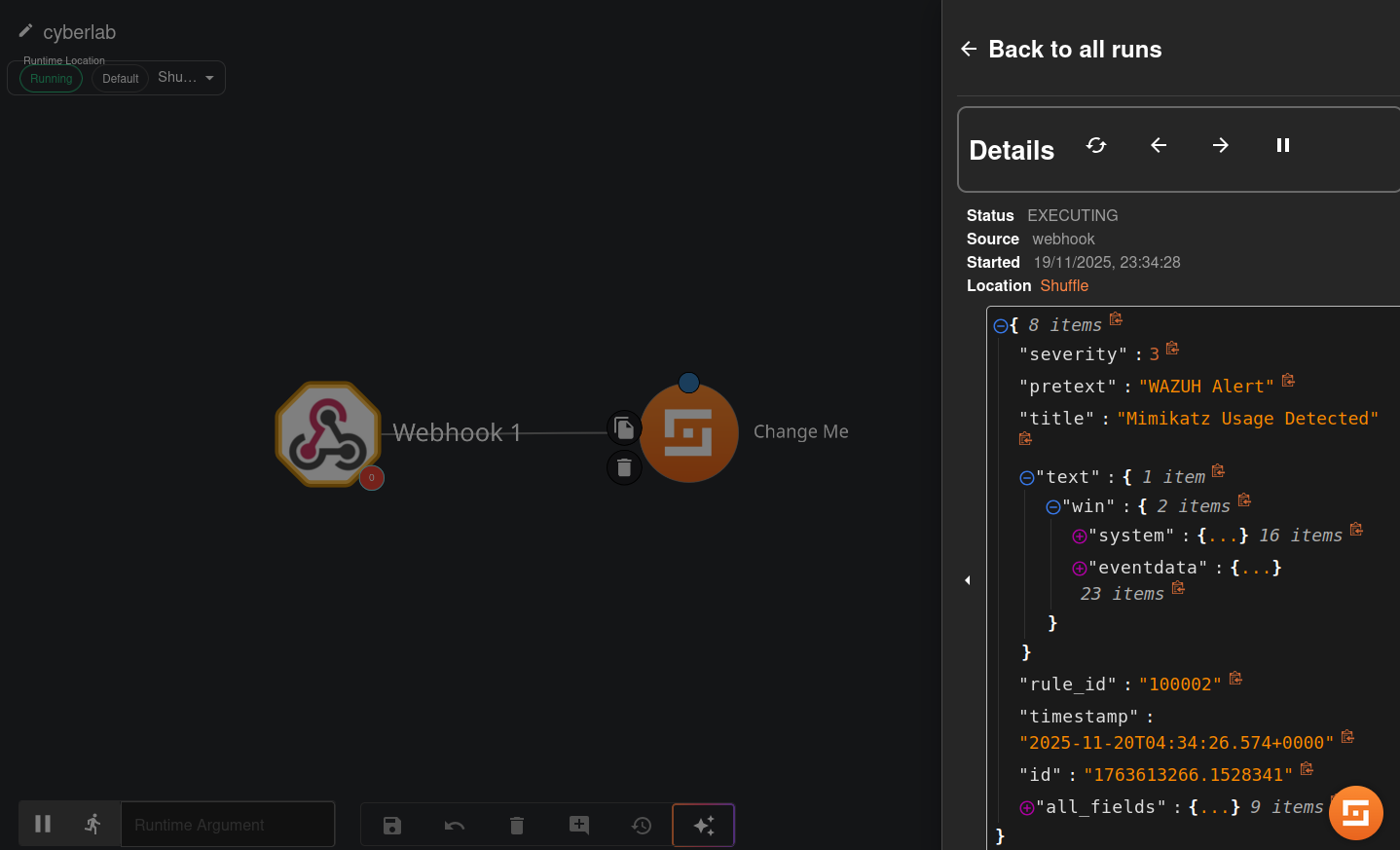

Head back to Shuffle. Click Explore all runs (right side)

Our Mimikatz alert should pop up

Delete the “Change me” item

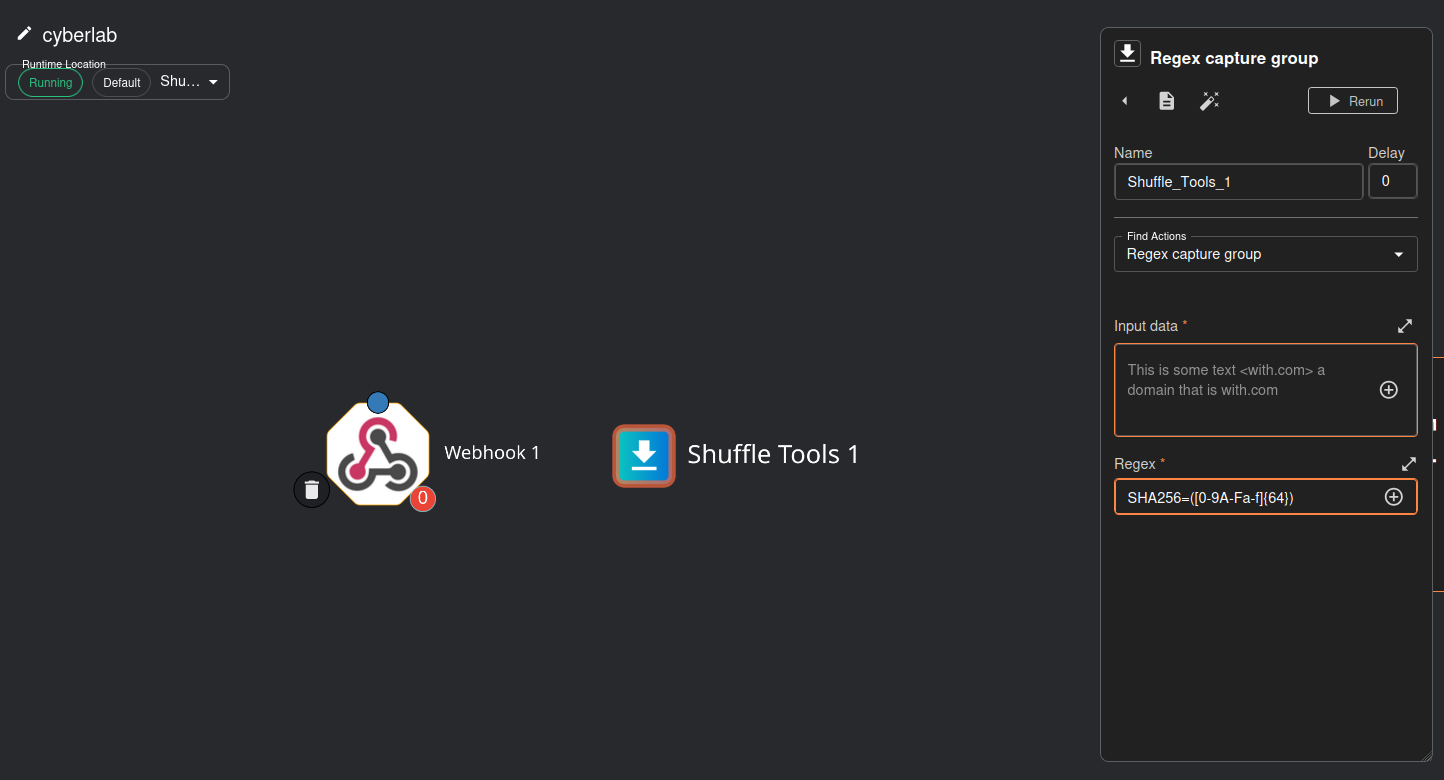

Drag the “repeat back to me” item (orange box with recycle symbol) onto the work area and change “Repeat back to me” to “Regex capture group”

Under regex, enter: SHA256=([0-9A-Fa-f]{64})

This regex basically retrieves the SHA256 file hash from the Wazuh alert.

Attach the webhook to the Shuffle tool (the arrow should point to Shuffle Tools 1)

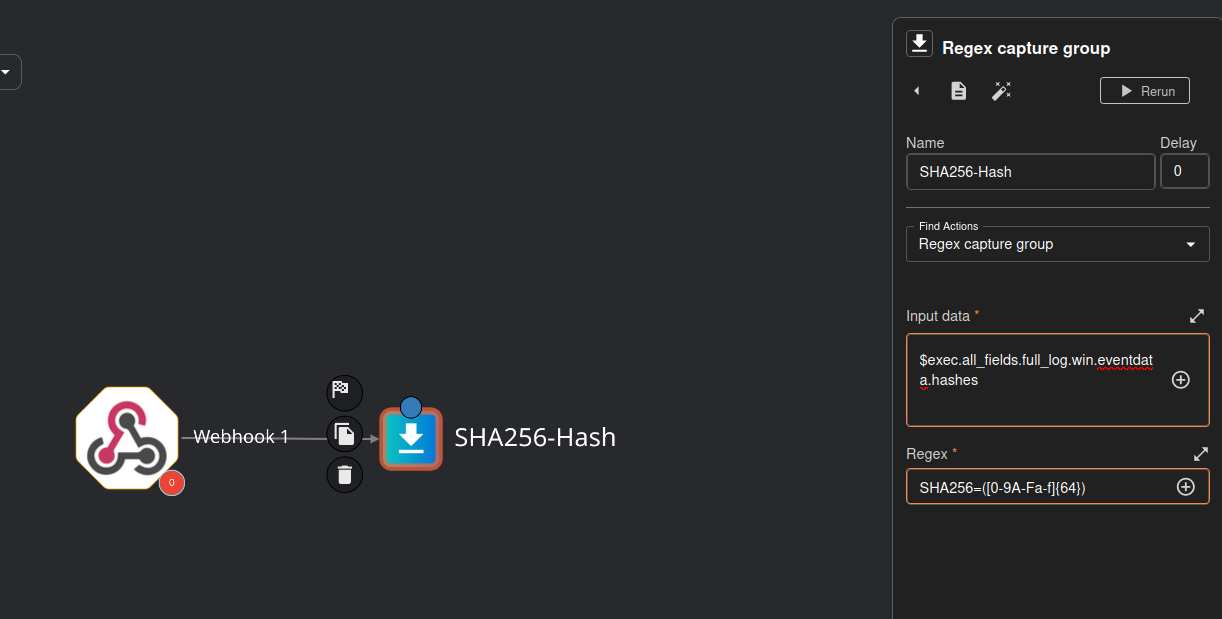

Rename Shuffle Tools 1 to SHA256-Hash

Under input data, click runtime argument > hashes

My runtime argument ended up being $exec.all_fields.full_log.win.eventdata.hashes, yours may be different

VirusTotal Integration

If you haven’t already, register for a VirusTotal account to get a free API key: https://www.virustotal.com/gui/home/upload

Log in, click on the top right > API key

Copy your API key

Look for the VirusTotal app on Shuffle and drag it onto the work area

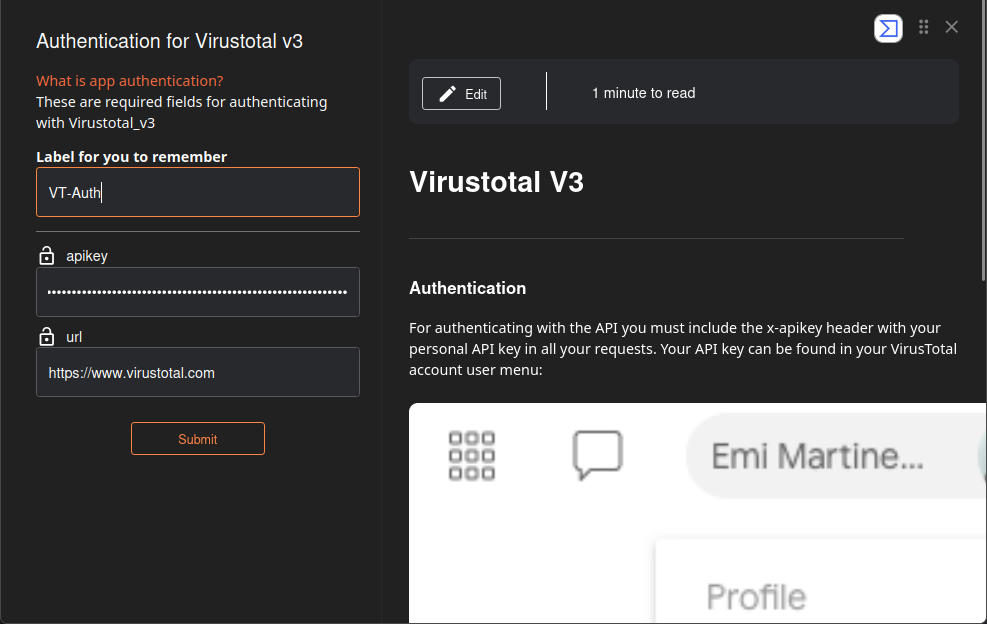

Click on VirusTotal > Authenticate to VirusTotal

Change the label name and paste your API key

Click Submit

Click on VirusTotal

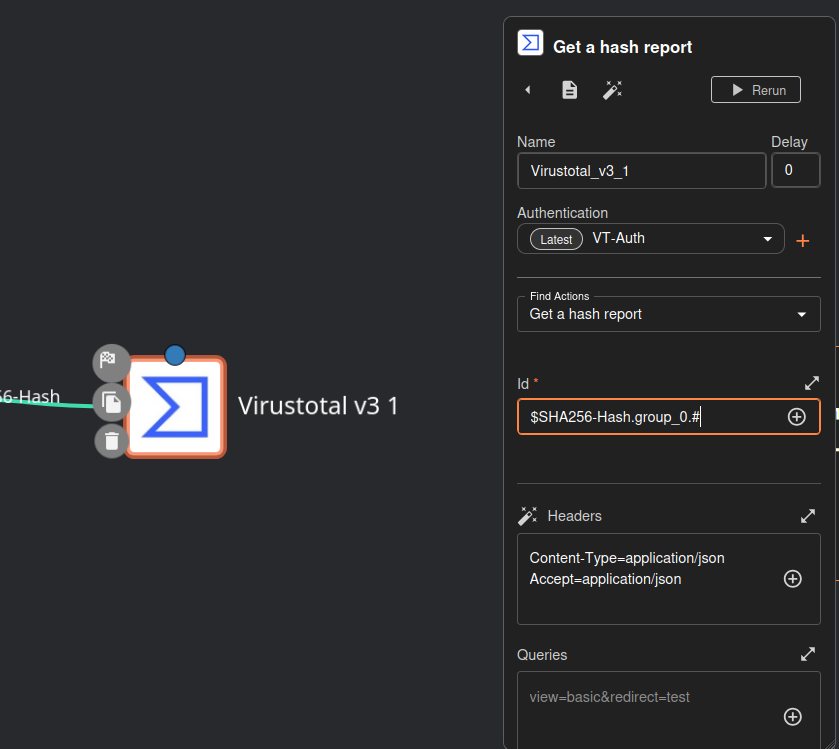

For find actions, select Get a hash report

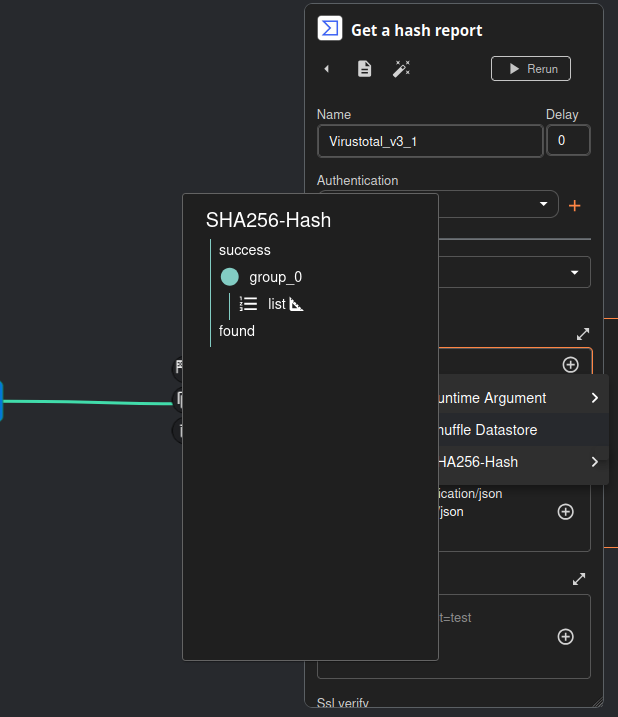

For id, select SHA256-Hash and click list

The id field should be: $SHA256-Hash.group_0.#

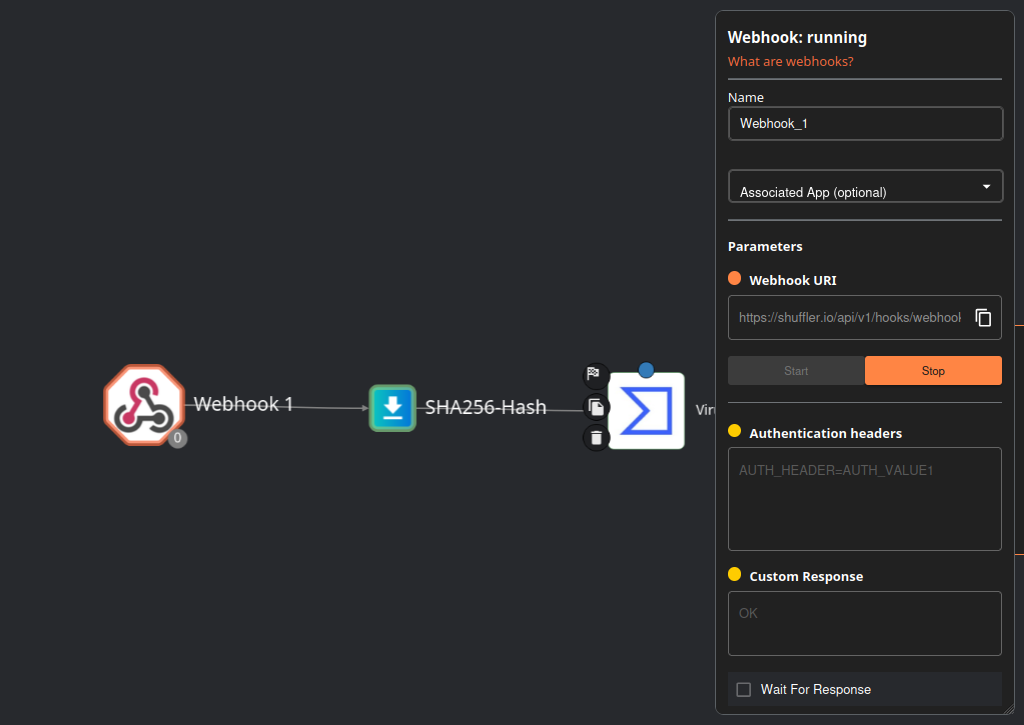

Make sure the webhook is still running

Head to Explore all runs > Rerun workflow

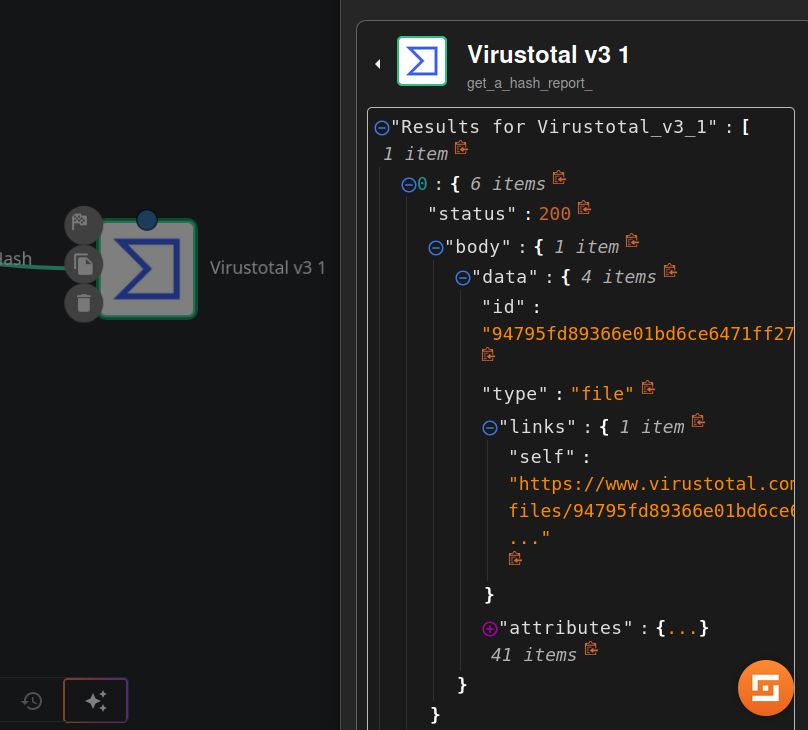

We should get an HTTP 200 code. The id field should match the hash from our Wazuh log

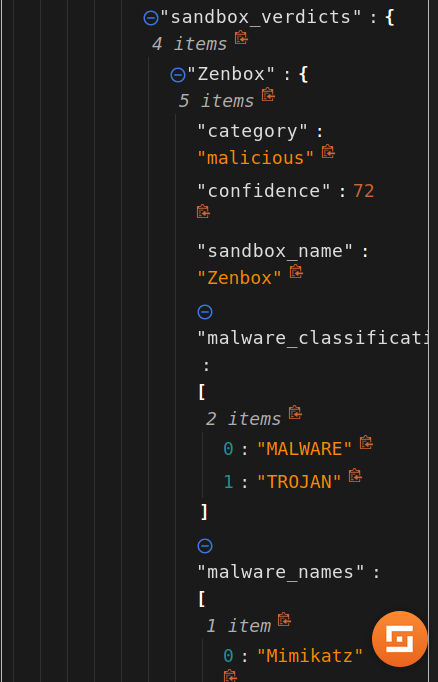

Some of the VirusTotal data

TheHive Integration

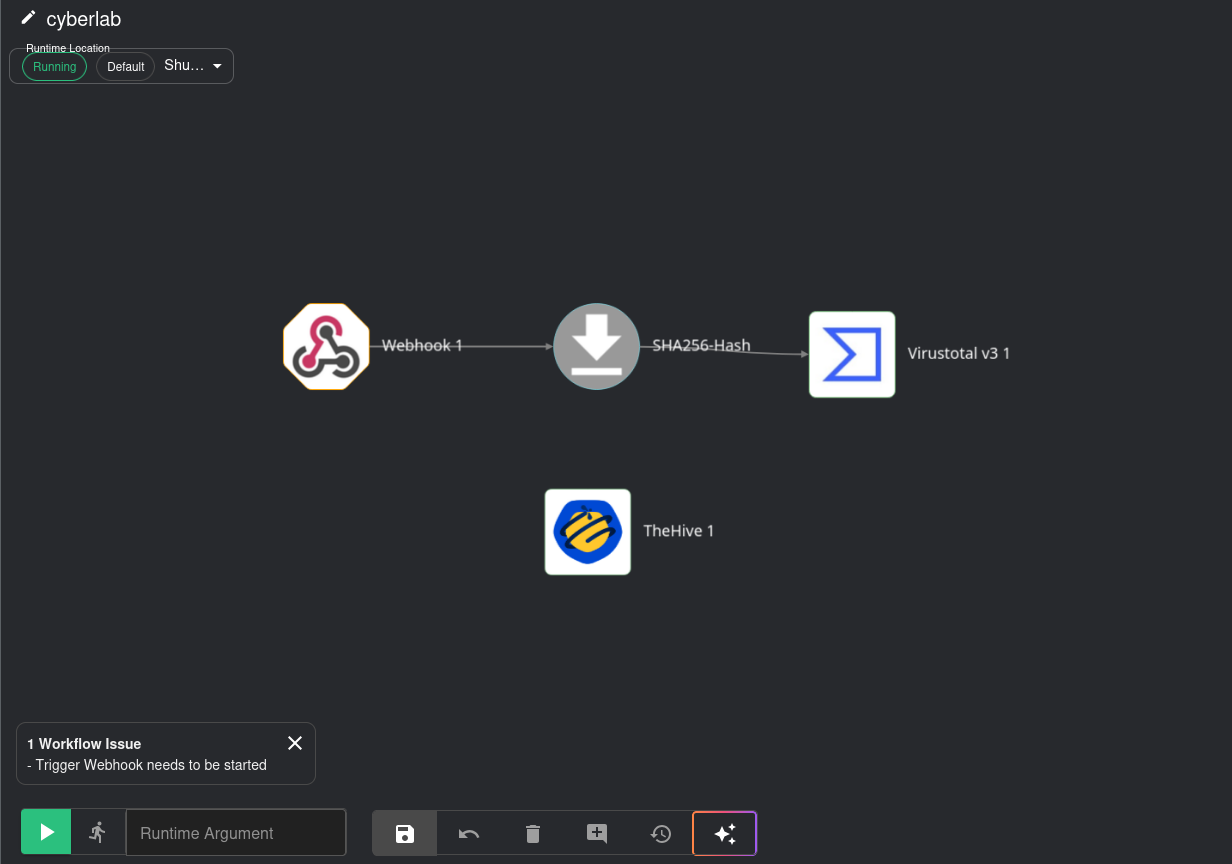

Drag TheHive onto the work area (do not attach it to anything yet)

Head to TheHive dashboard (http://10.10.1.40:9000 in my case)

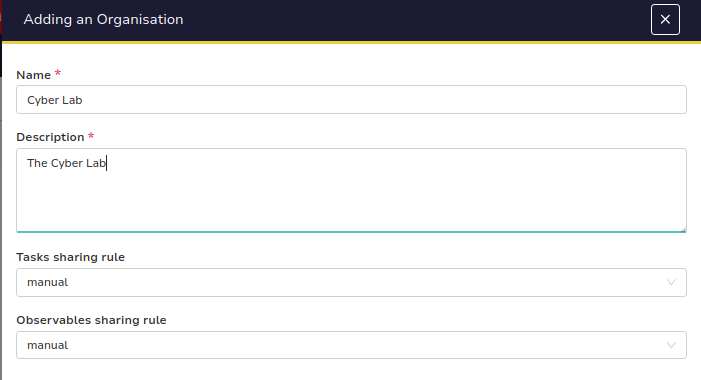

Log in and on the top left, click on Add Organization

Add a name and description and confirm (leave tasks sharing rule and observables sharing rule at default)

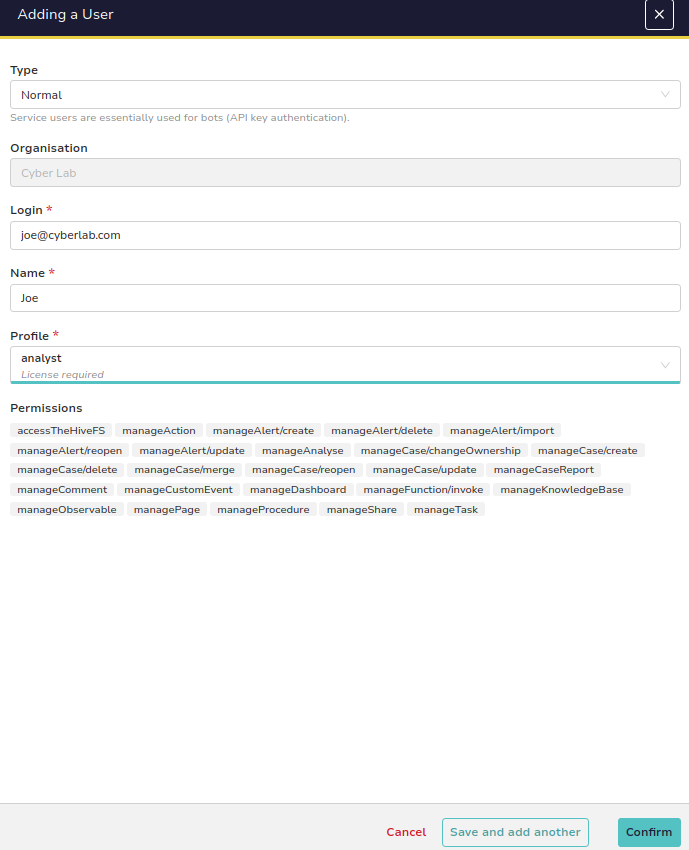

Click on the new org and add a new user (top left)

Set a login and name

Set the profile to analyst

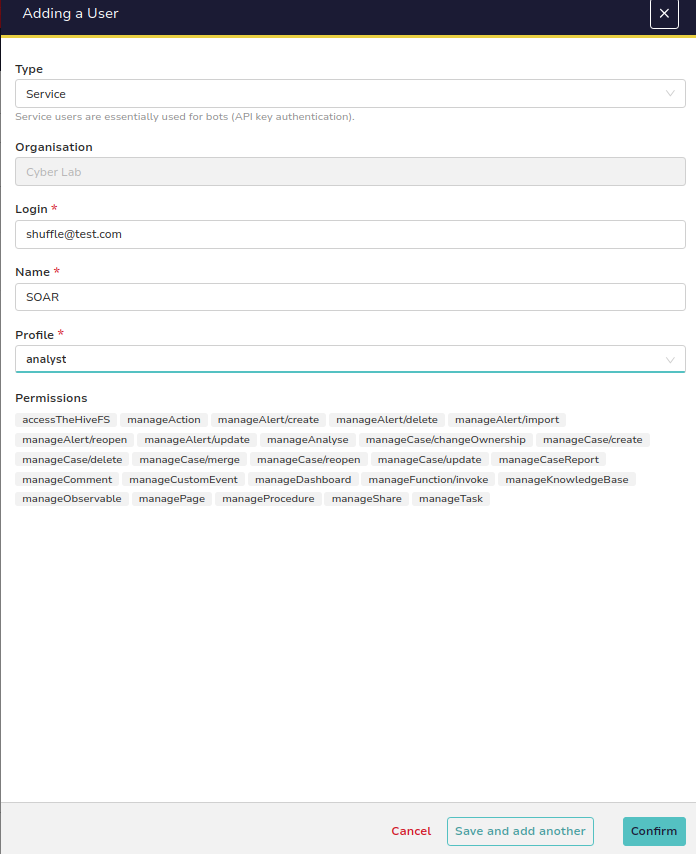

Click Save and add another

This will be a service account

I set the login to shuffle@test.com and the name to SOAR

Set the profile to analyst

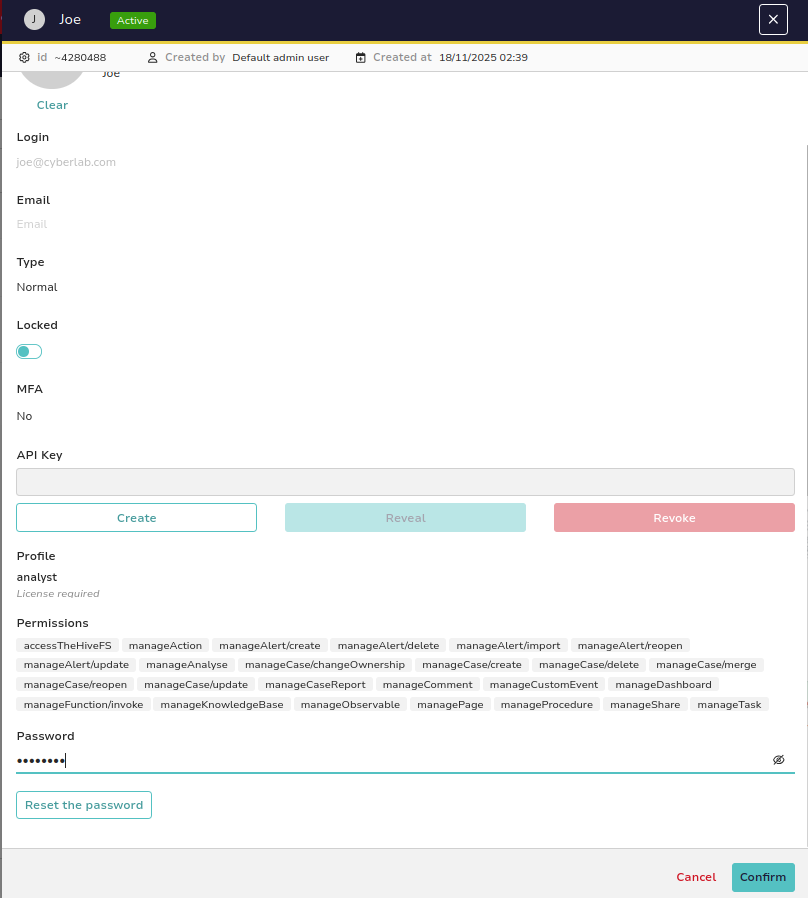

Click on the user account (eyeball icon)

My user account is joe@cyberlab.com

Give this user a password

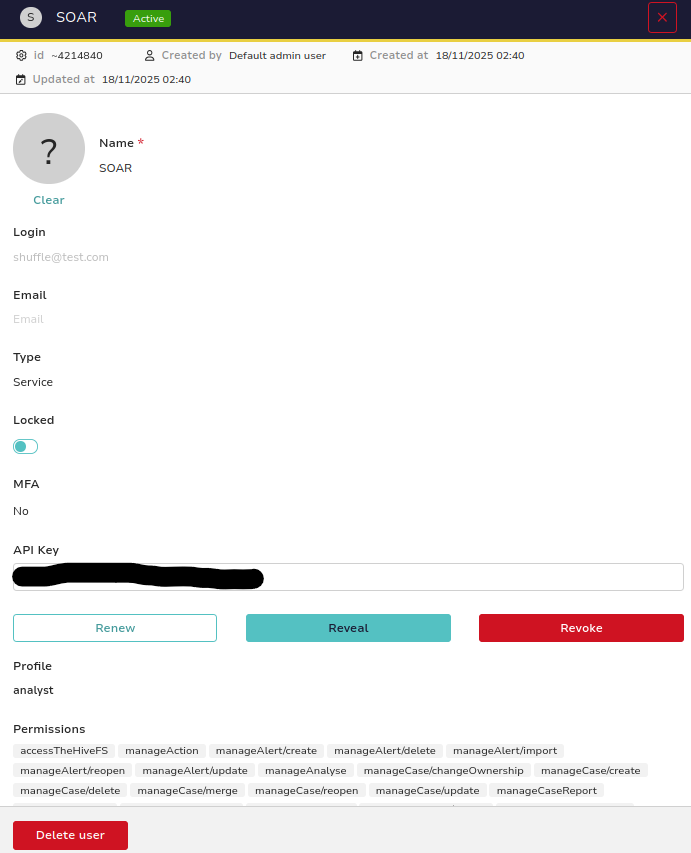

Next, click on SOAR (eyeball icon)

Create an API key for this account

Copy the key

Head back to Shuffle

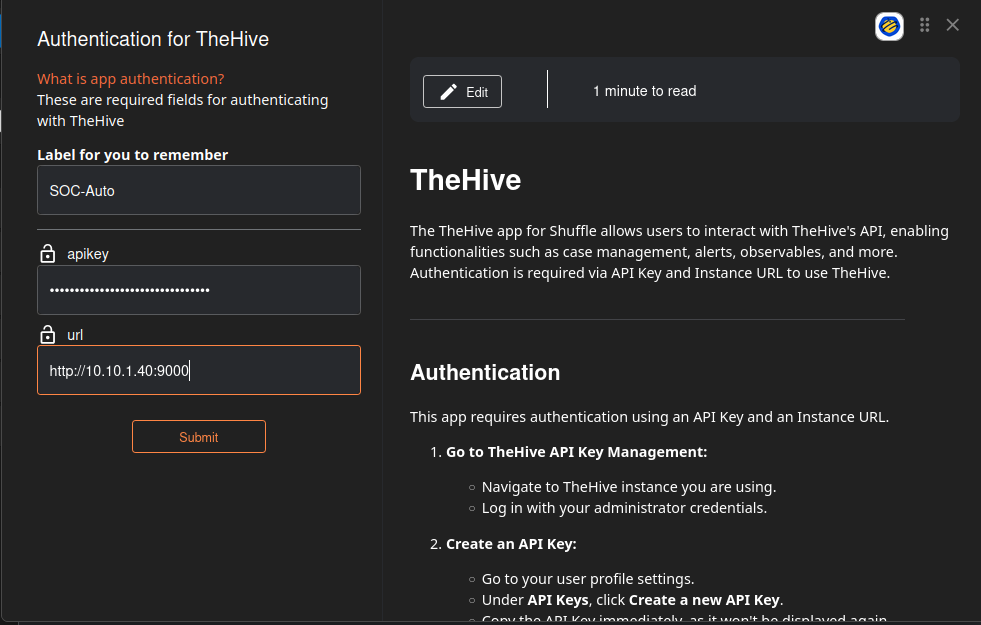

Click on TheHive > Authenticate TheHive

Set a label name and paste the API key

For the URL, put in the IP of TheHive VM and set the port to 9000

Connect the VirusTotal item to TheHive (make sure the arrow points to TheHive)

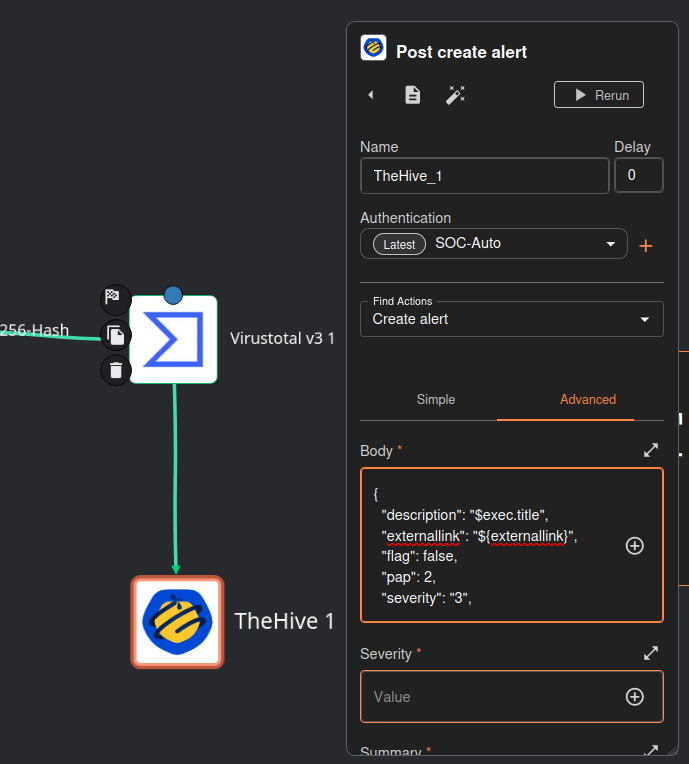

Click TheHive

For Find Actions, set it to create alert

Click on advanced

Paste this JSON for the body (your runtime arguments may be different, but these are mine)

{
  "description": "$exec.title",
  "externallink": "${externallink}",
  "flag": false,
  "pap": 2,
  "severity": "3",
  "source": "$exec.pretext",
  "sourceRef": "$exec.rule_id",
  "status": "New",
  "summary": "Mimikatz activity detected on host $exec.all_fields.data.win.system.computer",
  "tags": ["T1003"],
  "title": "$exec.title",
  "tlp": 2,
  "type": "Internal"
}

This will basically create a case on TheHive using information from the Wazuh log. You can customize the data to your liking and make it as descriptive as you want, but for now we just want this to be a proof of concept to make sure everything works.

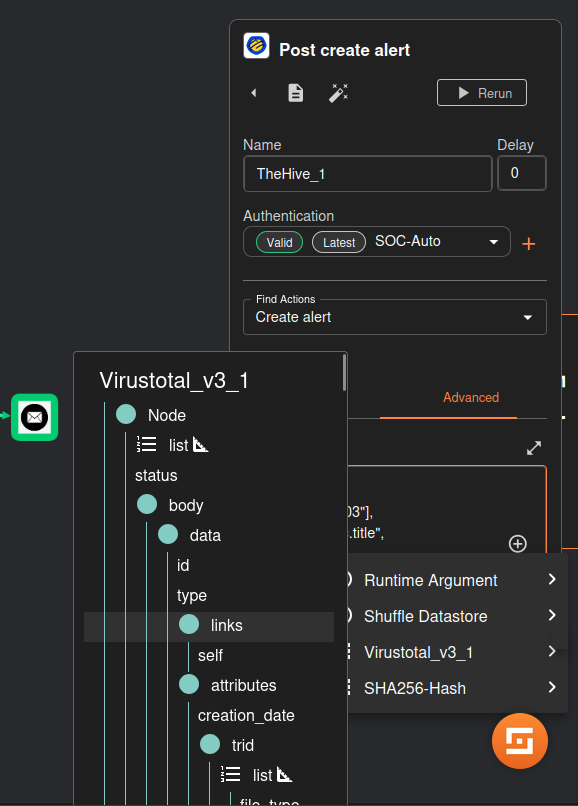

Optional VirusTotal arguments to include in the case.

Save and rerun the workflow

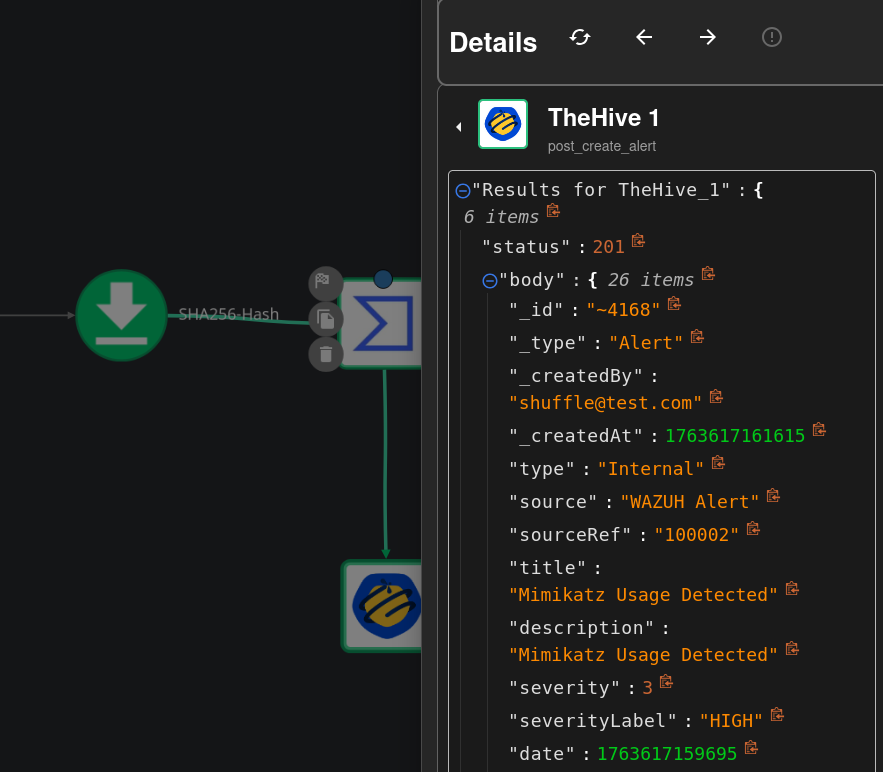

We should get a an HTTP 201 Created code

Head back to TheHive dashboard

Log in as the analyst user (joe@cyberlab.com in my case)

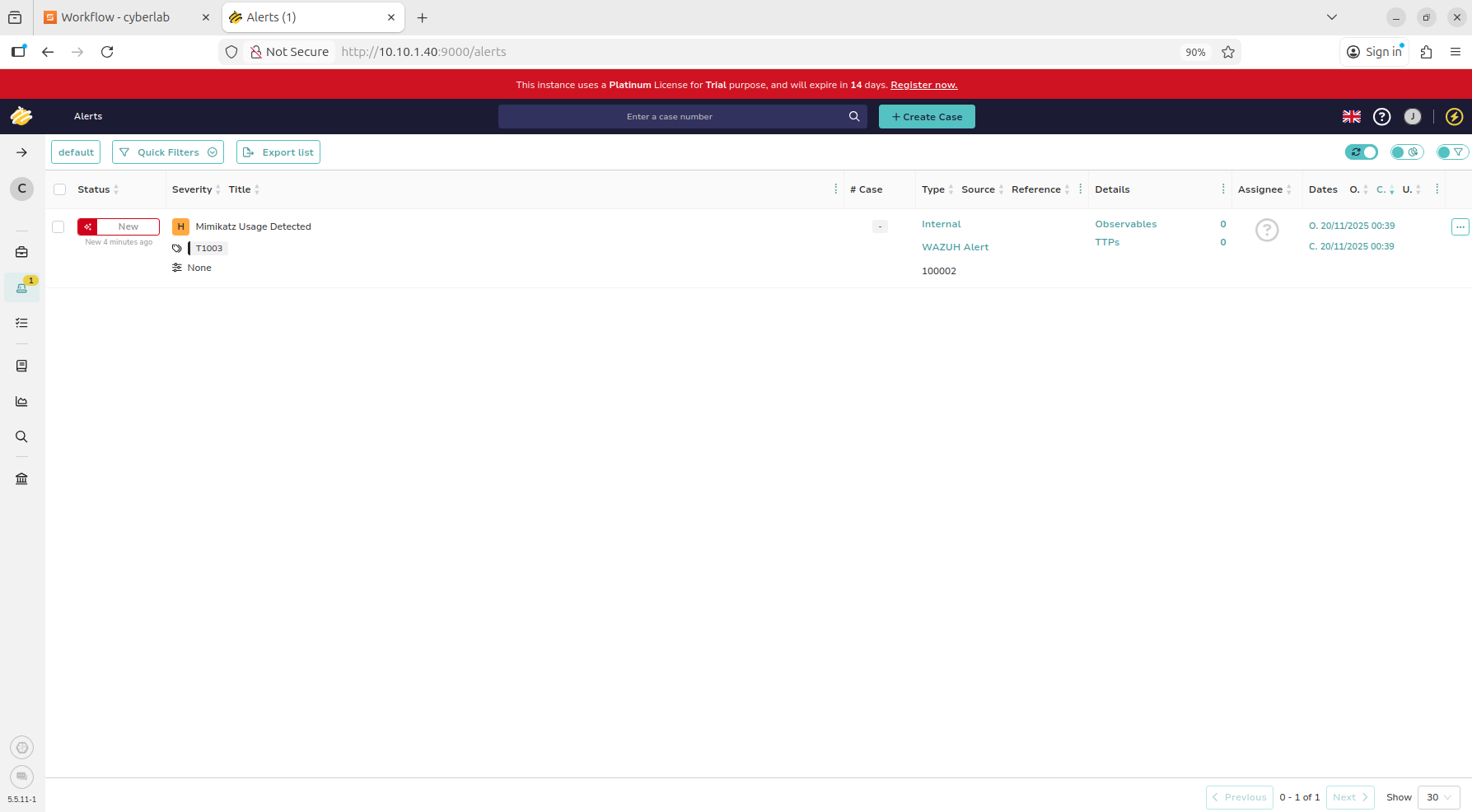

On the left hand side, notice the alert

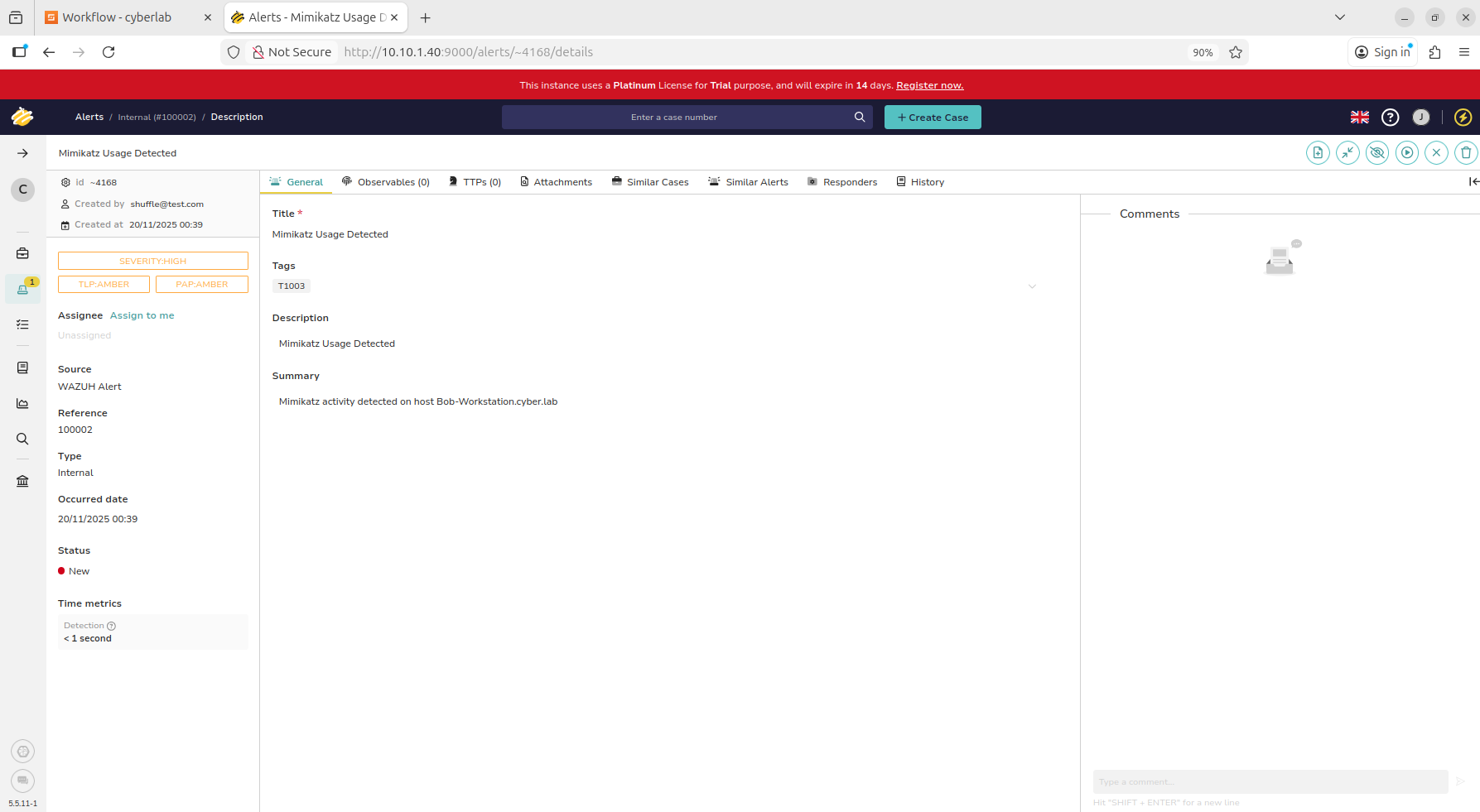

Click on the alert, and we should see the Mimikatz case created

Nothing fancy, but our automated workflow is working so far

We may add extra data like the process ID, time of execution, etc.

Email Alert

Head back to Shuffle

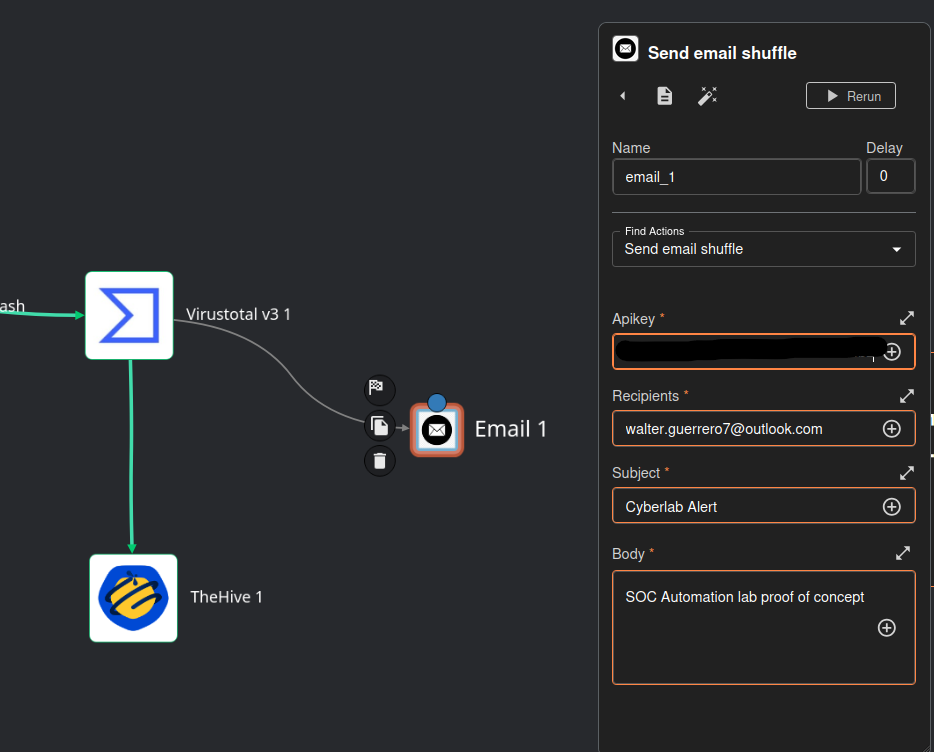

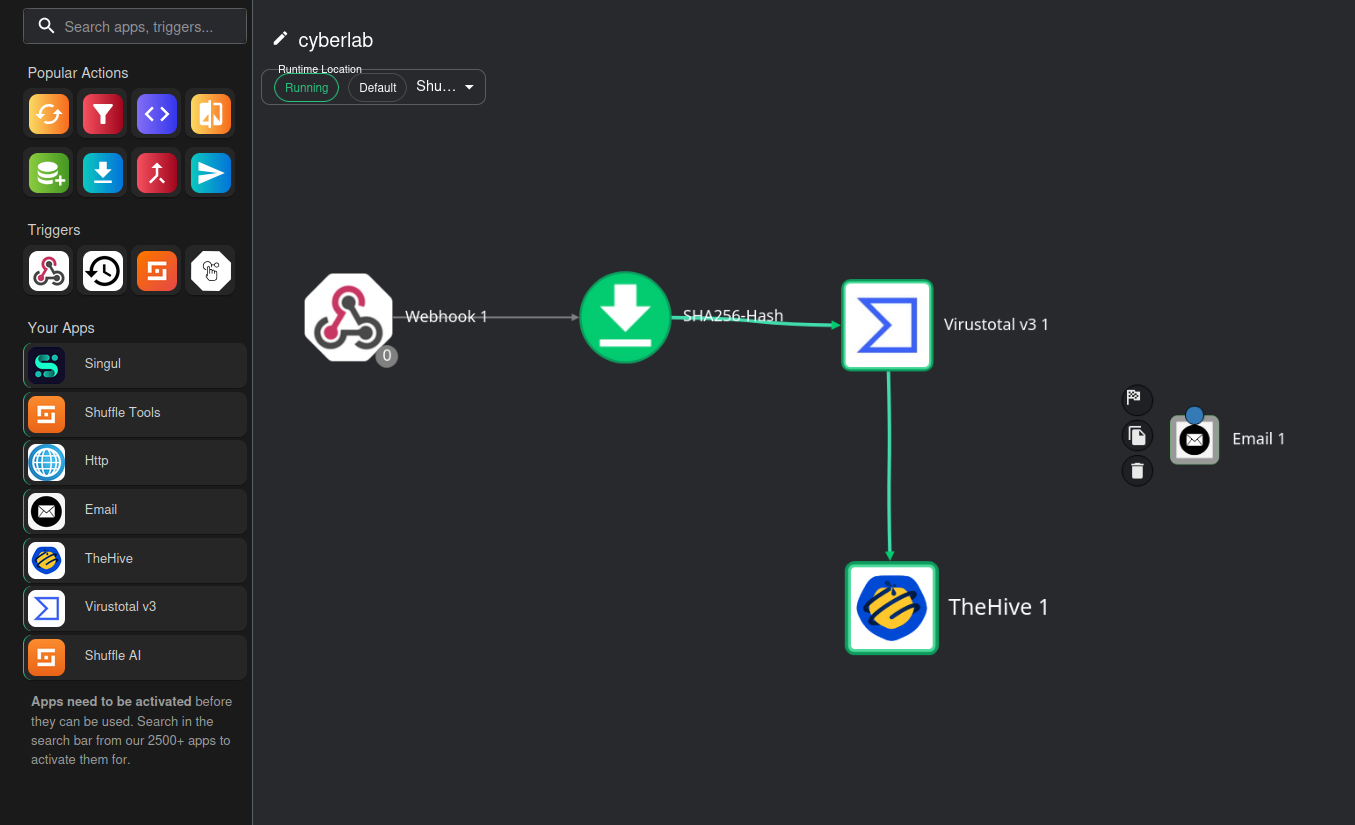

Drag Email onto the work area

Connect VirusTotal to the Email icon

Click on Email

Leave Find Actions to Send email shuffle

Paste your Shuffle API key (free with your Shuffle account)

You will need to register for an actual Shuffle account to get your free API key - https://shuffler.io/register

Under recipients, put your own email

For the subject and body, you can set this to anything you want.

We can add runtime arguments for the body, but again, this is mainly a proof of concept so we don’t want anything too crazy yet.

Save and rerun the workflow

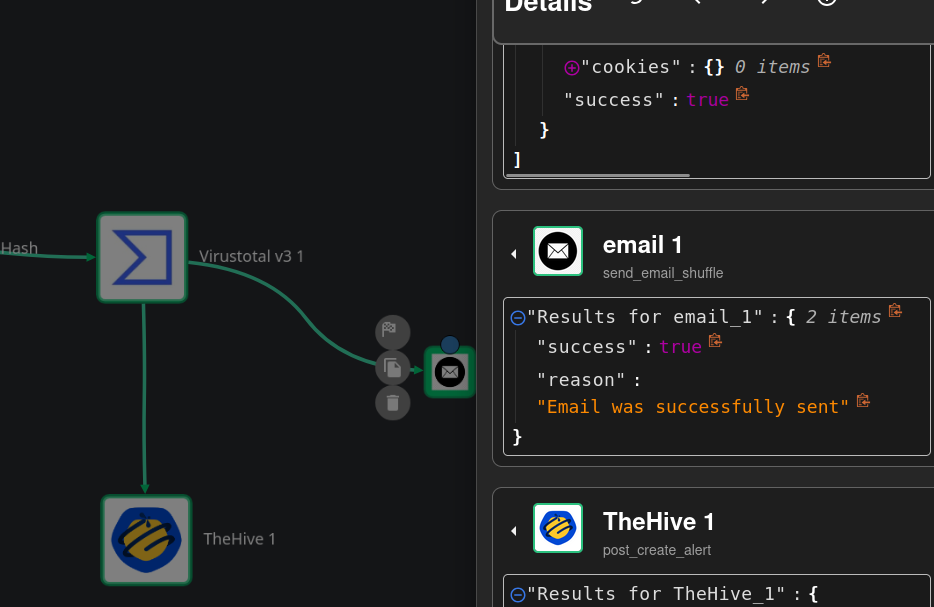

When it is finished executing, we should see a success message for the email

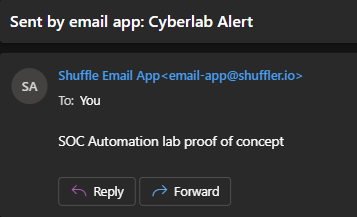

Head to your email

We should see the alert

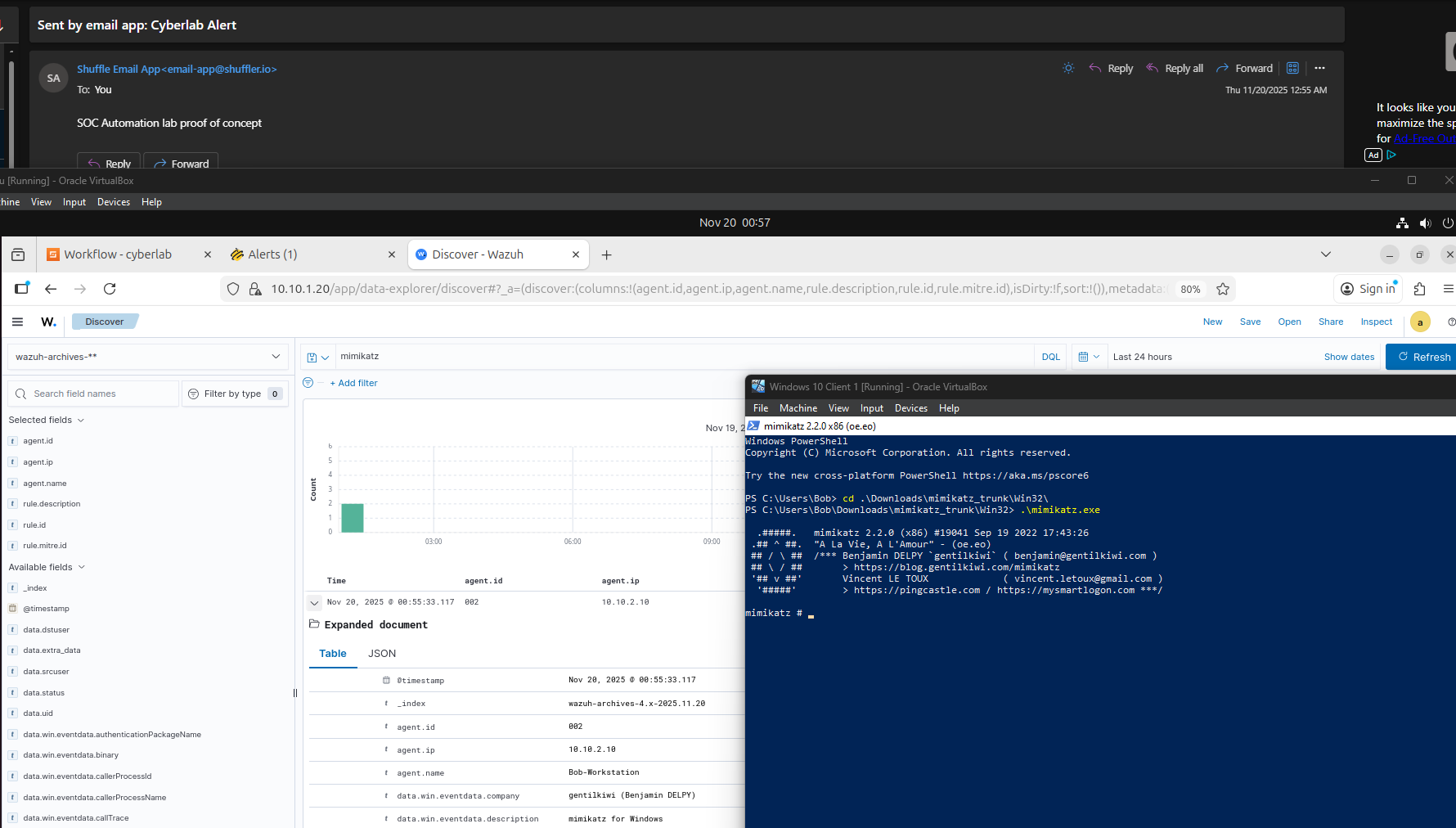

Notice the timestamps of the Wazuh log and the time when the email was sent; it is almost instantaneous.

Next, we will create a Wazuh Active Response rule to quarantine the endpoint and update our email alert.

Next: Wazuh Active Response
