Cybersecurity Lab

A virtualized Active Directory and security operations center (SOC) environment using free and open source solutions (for the most part).

Posted Updated
By Walter Guerrero
2 min read
Cybersecurity Lab

This lab is retired, see the updated lab here

Objective

The goal of this lab is to learn cybersecurity tools and concepts through both the lens of the blue team and red team (essentially, purple teaming). Additionally, an Active Directory environment is set up to simulate a small corporate network.

Technology Stack

Operating Systems: Linux (Ubuntu, Debian, FreeBSD), Windows (Server 2025, 10 Enterprise Edition)

Technologies Used: Active Directory, firewalls, routing, security information and event management (SIEM), extended detection and response (XDR)

Solutions Used: OPNsense, Wazuh, Sysmon, Kali Linux, OpenVAS

Topology

I wanted the lab VMs to be completely isolated from my home network, host machine, and the Internet. That is, the lab VMs should not be visible to my home network, and vice versa.

I achieved this isolation by using an OPNsense VM as a router/firewall for all lab VMs. The lab VMs get Internet connectivity via the OPNsense router, and the OPNsense router gets Internet connectivity via my home router. Essentially, the lab VMs are behind 2 layers of firewalls. Internet connectivity is necessary for some VMs for updates or APIs used by some of the solutions. If the OPNsense VM is not running, none of the VMs will have Internet connectivity and will not be able to communicate with other VMs.

OPNsense has 4 adapters configured:

  • Adapter 1 (Bridged): The OPNsense VM is treated as an actual device on my home network, so it gets an IP address and Internet connectivity from my home router.

  • Adapter 2 (Internal network 1): This network will consist of any server VMs for the lab, such as the Domain Controller and Wazuh.

  • Adapter 3 (Internal network 2): This network will consist of Active Directory clients, which currently consists of 2 Windows 10 VMs.

  • Adapter 4 (Internal network 3): This network will consist of VMs to perform any administrative or SOC-related tasks (mainly Linux based VMs).

Note: The topology may change depending on what I do in the future (adding or removing VMs, creating a DMZ, etc.)

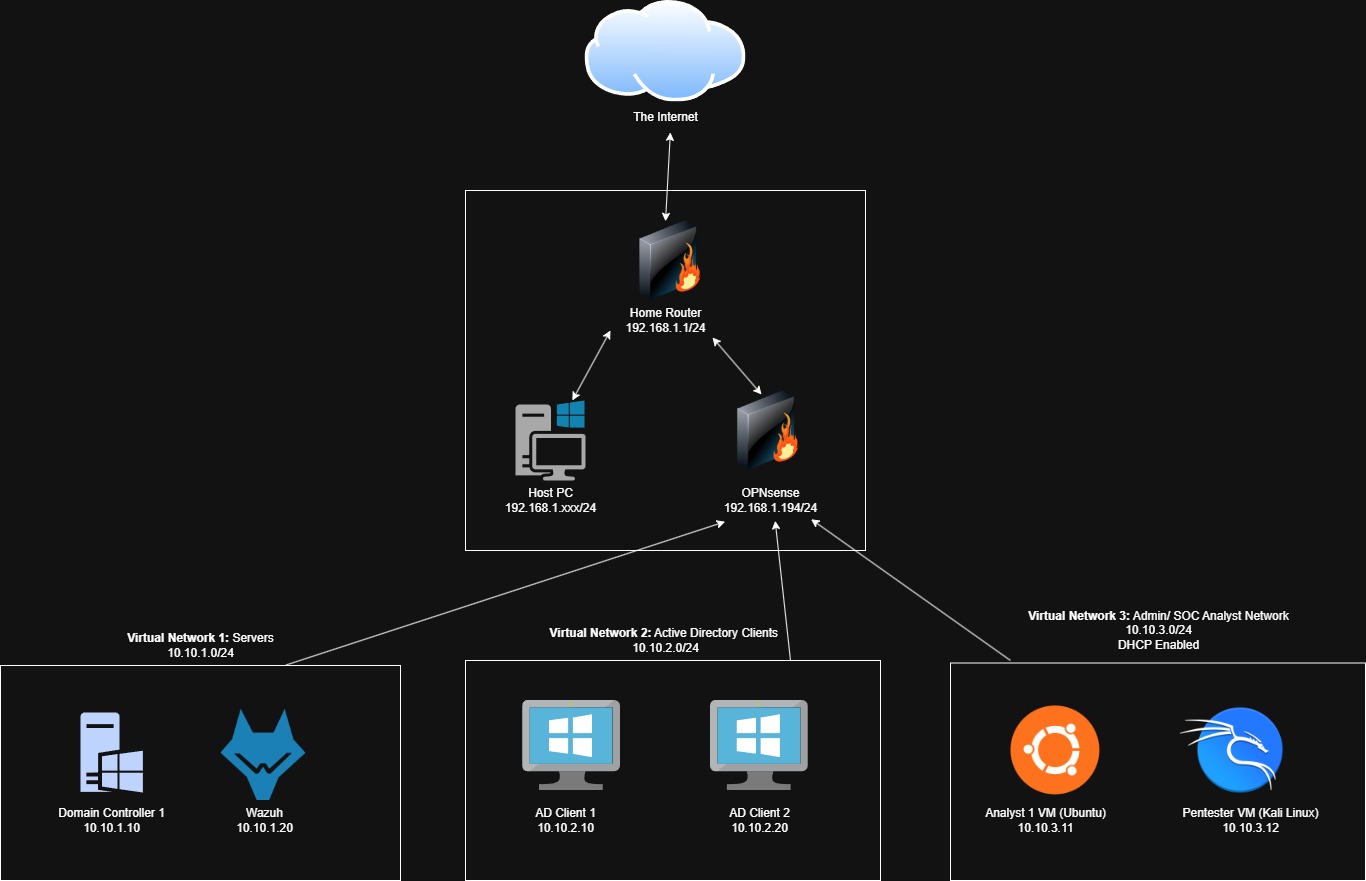

Current topology:

1

Hardware Specs

Since I am hosting a lot of VMs locally (not in the cloud) my main PC is pretty beefy:

CPU: i7-14700K (20 cores, 28 logical processors)

RAM: 64 GB

Storage: 2 TB SSD

I would recommend similar specs if you plan on creating a lab like this one

VM Setups and Exercises

The VM setups and exercises are written in a detailed, step-by-step manner to serve as documentation for the entire project, and in case anyone would like to replicate my setup.

Initial Lab Setup

Active Directory Exercises

Blue Team Exercises

Red Team Exercises

  • Soon
